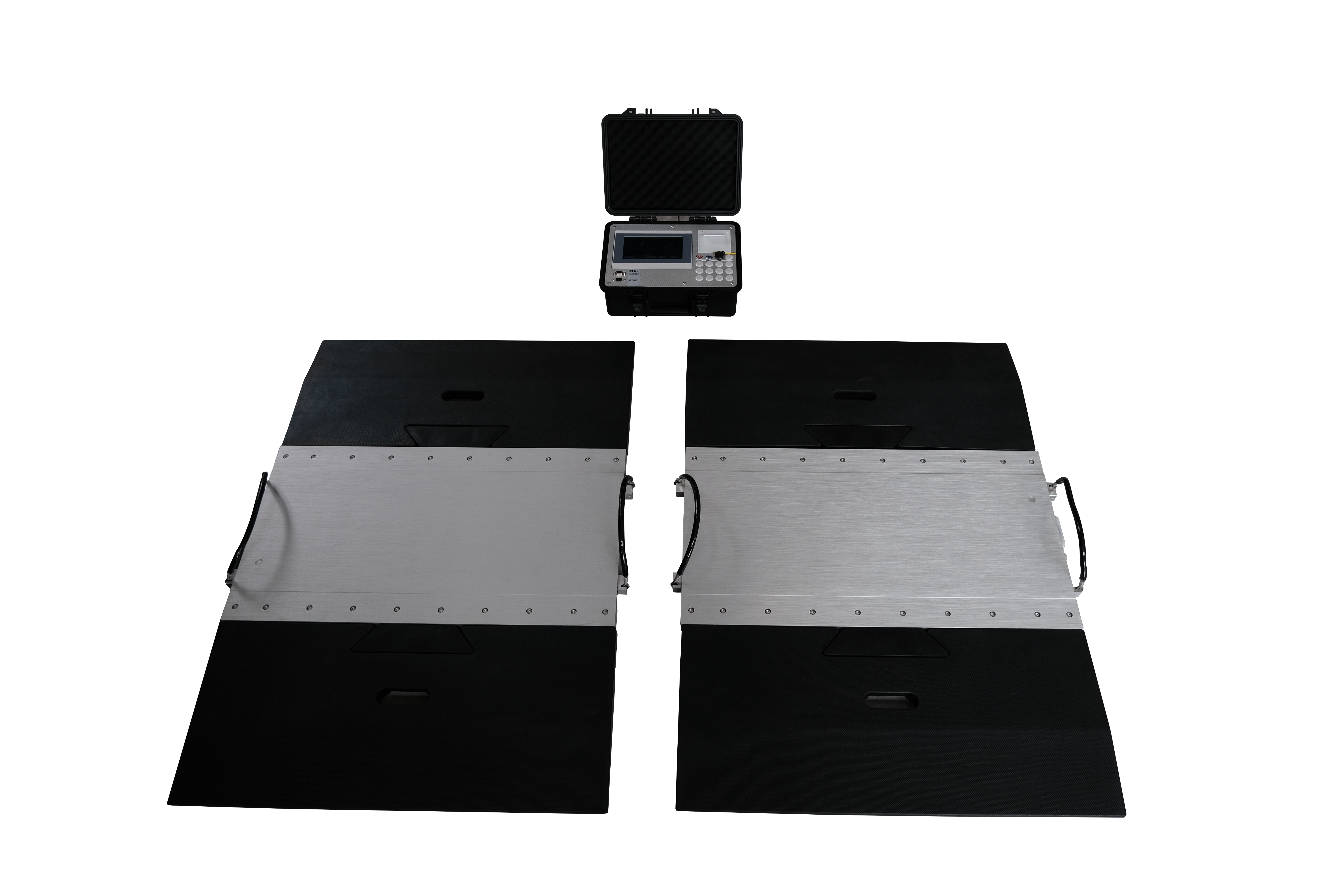

Portable Axle Scale

The Hener Portable Axle Scale offers a lightweight, durable solution for on-the-go vehicle weighing. Designed for easy transport and quick setup, it delivers accurate axle weight readings in various field environments. Ideal for logistics, law enforcement, and construction vehicle monitoring.

Model:
Portable Axle Scale
Brand:
Hener

Capacity:	5t 10t 15t 20t 30t
Pad Dimension:	80043030(mm)
Ramp Dimension:	800*350(mm)
Type:	Wires Wireless
Availability:

Quantity:



Inquire

Product Description

Portable Axle Scale Description - Hener Scale

Portable Axle Scale

Key Features:

● Portable & Compact Design

Lightweight aluminum platforms with built-in handles ensure easy transportation and deployment in various locations.

●Wired or Wireless Connectivity

Available in both wired and wireless versions to suit different operational needs, including long-distance remote monitoring.

● High Accuracy Load Cells

Equipped with precision shear beam load cells, the scale delivers highly accurate axle or total vehicle weights with minimal error—ensuring reliable data for overload control and compliance checks.

● Modular Platform System

Each platform can function independently or be paired for dual-axle or multi-axle weighing. This modular design allows flexibility to accommodate various vehicle sizes and axle configurations.

● Waterproof & Corrosion-Resistant

The sealed aluminum housing with anodized surface treatment offers excellent resistance to water, dust, and corrosion (IP66/IP68 protection), making it suitable for harsh outdoor environments.

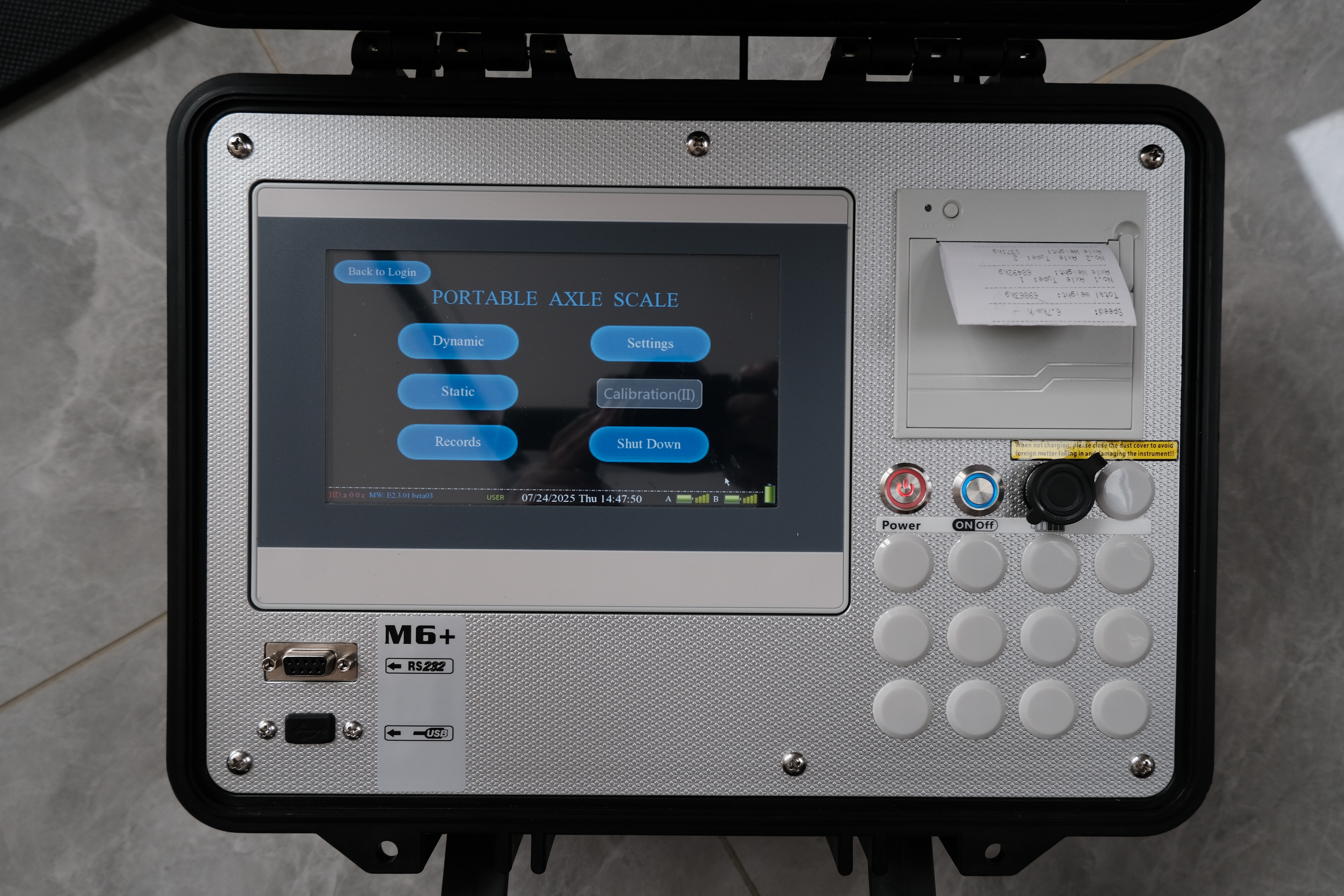

● Multiple Indicator Options

Available with wired or wireless indicators, including LCD displays with data storage, ticket printing, and USB export. Some models offer Bluetooth or GPRS connectivity for remote monitoring and data transfer.

● Quick Setup & User-Friendly Operation

No foundation or complex installation is needed. The scale features auto-zero, hold function, overload alerts, and intuitive controls—ideal for quick deployment and minimal training.

Applications:

● Highway Overload Enforcement

Used by traffic and transportation authorities for on-site vehicle weight inspections to detect and prevent axle overload violations.

● Logistics and Freight Centers

Enables fast and accurate axle weight checks for trucks entering or leaving warehouses, distribution hubs, or freight terminals.

● Construction and Mining Sites

Weighs heavy-duty vehicles such as dump trucks, loaders, and mixers to ensure safe load limits are maintained on-site.

● Agricultural Transport

Helps farmers and agricultural suppliers weigh tractors and trailers carrying produce, grains, or equipment before transportation.

● Military and Emergency Response

Used for weighing armored vehicles, mobile units, or supply trucks during deployment or logistics operations in remote areas.

Why Choose Our Portable Axle Scale:

● Exceptional Portability & Durability

Crafted from aerospace-grade aluminum alloy, our axle scale is both rugged and ultra-lightweight. It’s designed for daily transport and outdoor use, offering long-term reliability in tough environments.

● Accurate & Compliant Weighing

With precision-engineered load cells and advanced electronics, the scale ensures highly accurate axle and gross vehicle weight readings—ideal for legal enforcement, safety compliance, and logistics optimization.

● Flexible, User-Friendly Operation

Our system supports wireless or wired indicators, modular pad combinations, and plug-and-play setup. It’s easy to operate, requires no foundation, and includes essential features like overload alerts and print-ready data storage.

Portable Axle Scale

Specifications

Max Capability(Single Axle)	5t	10t	15t	20t	30t
Pad dimension	80043030(mm)
Ramp dimension	800*350(mm)
Precision	Static ±0.05%,Dynastic±2%
Load Cell structure	Pad is load cell, strain gauge inside
Cable Length	One set include 2 weighing pads, Cable length is 10m and 8m, but longer cable is optional
Division	10kg,20kg,50kg
Inspecting Speed	<10km/h on average
Work Temperature	-45°C ~ +70°C

Videos

FAQ

FAQs for Portable Axle Scale - Hener Scale

Q1:What types of vehicles can the Hener Portable Axle Scale weigh?

The scale is suitable for a wide range of vehicles, including trucks, trailers, buses, construction equipment, and agricultural machinery. It supports both single and multi-axle configurations.

Q2:Is the scale easy to transport and set up in the field?

Yes. Each weighing pad is lightweight and compact, allowing one person to carry and deploy it. No foundation or pit is needed—just a flat surface for quick setup.

Q3:How accurate is the Hener Portable Axle Scale?

It uses high-precision load cells with a typical accuracy of ±1% or better, depending on proper setup and surface conditions. It complies with international weighing standards for axle load measurement.

Q4:Can it be used in harsh outdoor environments?

Absolutely. The scale features an anodized aluminum housing with IP66/IP68-rated protection, making it waterproof, dustproof, and corrosion-resistant—ideal for rugged or all-weather conditions.

Q5:What types of indicators and data functions are available?

The scale supports both wired and wireless indicators with options for LCD display, built-in printer, data storage, USB export, and even remote data transfer via Bluetooth or GPRS (depending on the model).
