2000kg Industrial Digital Platform Scale

Model Number:HR-P03
Power Supply:AC 187~242V;49~51Hz , DC 6V/4AH
Display Type:A12E,A27,A23P optional(OIML&CE approved)
Product name:Industrial Floor scale
Dimension:1m*1m, 1.2m*1.2m, 1.5m*1.5m, 2m*2m or customized
Plate Material:Q235 carbon steel or stainless steel
Capacity/accuracy:1000kg, 2000kg, 3000kg, 5000kg
Thickness of plate:4/5/6mm
Load Cells:4 pcs Keli SQB,Zemic H8C optional
Transmission Distance:RS232C≤30m

Product Description

Hener Series floor scale platforms are an economical and reliable solution for heavy industrial and commercial applications.
Widely used in warehousing, industrial logistics, general weighing. etc. Rugged steel diamond plate surface with heavy duty welded wide channel support. Features NTEP class III approval indicator, IP65 reading.

1. Weighing Capacity: 1000-10000KG
2. With OIML, NTEP and CE approved KELI load cells.
3. Mild-steel structure, U shape beams by modules, powder coated.
4. 4mm chequer plate; 5mm/6mm can be customized
5. With YAOHUA A12E indicator. or other brand indicators with clear LCD display with backlight
6. With junction box, and 5m cable.
7. Weight:34-500kg, different sizes
8. Accuracy:0.5kg
Configurable digital measurement rate. Display modes for the display of NET weight or GROSS weight.

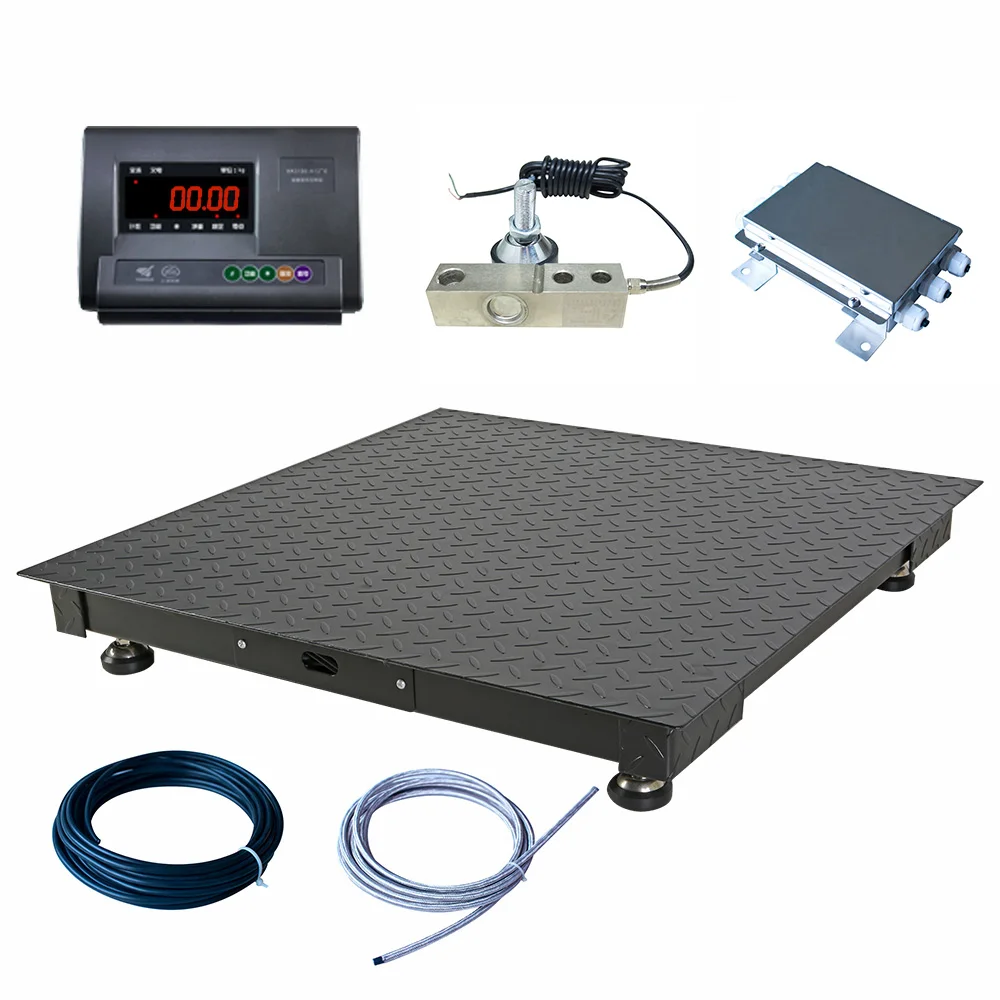

Part of floor scale

1.Adjustable foot:turn up,adjust height2.Tread plate:carbon steel plate or stainless plate is optional
3.indicator:with print or without print as your rquest
4.High precision sensor:the different brand,different price and different quality is optional
5.Signal line:5m,8m as your request
6.Anti-mouse board:as your request

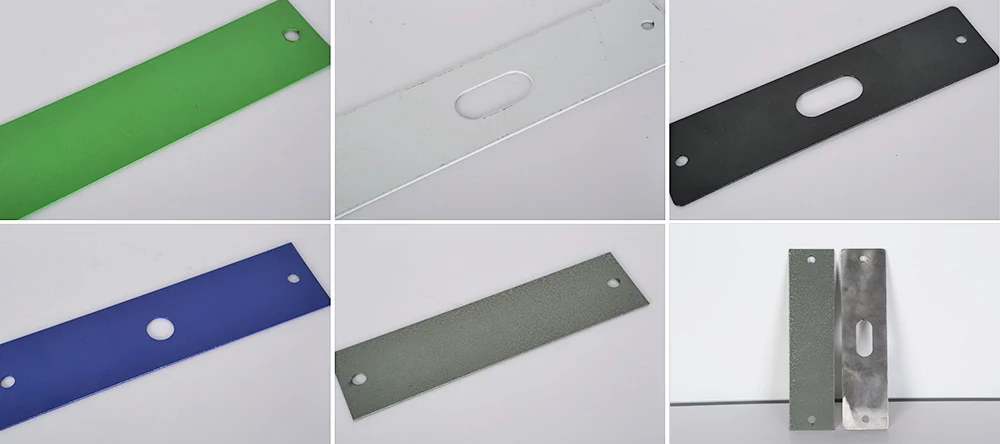

Color optional
Our current regular colors are: black, white, blue, green, army green and stainless steel. Different colors can be customized on

The surface can be made smooth, threaded. stainless steel material
* Heavy Duty, Accurate, Easy Setup Floor Scale (Non-NTEP)
* Load Cell Capacity is 2 times Scale Capacity for Overload Protection 19’ Heavy Duty Quick Connecting Cable
* Stainless Steel Enclosure with Stainless Steel Wall Mount Bracket 6 Digits 0.7″ High LCD Display with Blue Backlight
* Units: KG, LB, OZ

Specifications of indicator:

LED display with back light
Configurable analog to digital measurement rate
Power for eight 350 OHM load cells
Units: lb/kg/oz
Complete digital calibration with full range
Display modes for NET or GROSS weight
Motion detection and automatic zero maintenance. Printer and continuous data output
Different kinds of signal output for printers, scoreboards and computers (includes livestock auction mode)
Com ports: RS-232 x 1
Counting function

Stainless steel bracket for mounting on the wall or table stand
Powered by an external 110V AC/DC Adapter and built-in rechargeable battery
NTEP CC#: 12-112 Regarding all deliveries, consignee/customer will be responsible for all additional accessorial fees including,
but not limited to: Limited Access, Remote Access, Residential, Farm, Delivery Appointment, Lift Gate, White Glove Service,
Re-consignment, Re-delivery and Inside Delivery
